ViViTek DW3321 Projector
  • ViViTek DW3321 Projector
  • ViViTek DW3321 Projector Connectors
  • ViViTek DW3321 Projector Top View

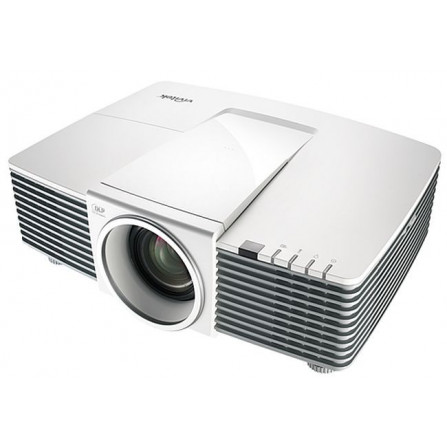

ViViTek DW3321 DLP Projector WXGA 5100 ANSI

SGD $2,499.00
Tax excluded

The DW3321 offers great features and performance combined with great installation flexibility. The 5,100 ANSI lumens make it bright enough for larger screens, and the wide screen WXGA native image resolution ensures that your content will be delivered with fidelity and sufficient detail for a wide range of applications. The 1,34-2,4:1 Throw Ratio makes it possible to install the projector in a wide range of distances, making installation planning easier whether you replace an older projector or making a new installation. The 1,7x zoom range and horizontal and vertical lens shift gives further flexibility when installing the projector. Features such as 3D, JPG reader and HDBaseT ensures the projector can handle modern signal inputs and features customers expect.

Optional HDMI Cable : (High-Speed with Ethernet)
Quantity

ViViTek DW3321 DLP Projector WXGA 5100 ANSI
Model: DW3321

Resolution: WXGA (1280 x 800)
Brightness: 5100 Lumens
Contrast Ratio: 10000:1
Weight: 8.4 kg

Native Resolution WXGA (1280 x 800)
Brightness 5100 ANSI Lumens
Contrast Ratio 10,000:1
Max. Supported Resolution WUXGA (1920 x 1200) @60Hz
Native Aspect Ratio 16:10
Lamp Life and Type 1,500 / 3,500 Hours (Normal / Eco. Mode), 370W/280W
Display Type Single chip DLP® Technology by Texas Instruments
Chip Size 0.65" DMD
Throw Ratio 1.32 - 2.24:1
Image Size (Diagonal) 21" - 351"
Projection Distance 1 - 10 m
Projection Lens F = 2.45 - 3.22, f = 18.8 - 32 mm
Zoom Ratio 1.7x
Lens Shift ( Based on Full Image Height) Vertical +23.7%, -12.7%; Horizontal +/-10.9%
Offset (Based on Full Image Height) 105% - 141%
Keystone Correction Vertical: +/-30° ; Horizontal: +/-25°
Speakers 7W x2
Video Compatibility SDTV (480i, 576i) / EDTV (480p, 576p) / HDTV (720p, 1080i, 1080p), NTSC (M, 3.58/4.43 MHz), PAL (B,D,G,H,I,M,N) SECAM (B,D,G,K,K1,L)
I/O Connection Ports VGA-In (15pin D-Sub) (x2), HDMI (x2: HDMI/MHLx1, HDMIx1), DVI-D, Component (5 BNC) (RGBHV), S-Video, Composite Video, Audio-In (RCA), Audio-In (Mini-Jack) (x3), VGA-Out (15pin D-Sub), Audio-Out (RCA), Audio-Out (Mini-Jack), RJ45 (x2: LANx1, HDBaseTx1), 12v Trigger, RS-232, 3D-Sync, USB type A for Display(Frame display) and JPG reader(Photo: Jpeg / Video: Mpeg4,H.264) (yes (JPG Reader Only)), USB A (x2: WIFI Dongle or JPEG Reader), USB miniB (USB Display), USB B (Service), Microphone (Mini-Jack), Remote Jack(wire remote)
Dimensions (W x D x H) 445 x 331 x 162 mm
Weight 8.4 kg
Noise Level 36dB / 33dB (Normal / Eco. Mode)
Power Supply: AC 100-240V, 50/60Hz Consumption: 380W (Eco. Mode), 480W (Normal Mode), <0.5W (Standby)
3D Ready(DLP link, PC+Video) Yes
Wireless Yes
Spare Lamp P/N 5811119760-SVV
3D Glasses P/N 3534257700
Remote Control P/N 5041846600
UPC Code 81309702032 1

Warranty (Projector): 3 years Local Carry In Warranty
Warranty (Lamp): 1 year or 1,000 hours whichever comes first

DW3321

Data sheet

Resolution
WXGA (1280 x 800)
Brightness (ANSI)
5100
Weight (Kg)
8.4
Display Technology
DLP
Throw Ratio
Standard Throw
Light Source
Lamp
Wireless
Yes
Interactive
No
Color
White
