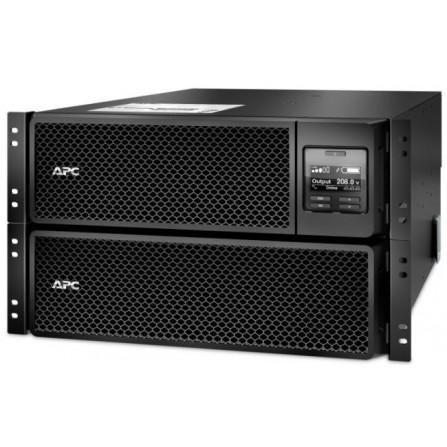

APC SRT8KRMXLI Smart-UPS SRT 8000VA 230V

SGD $6,699.00
Tax excluded

APC SRT8KRMXLI Smart-UPS SRT 8000VA 230V
Model: SRT8KRMXLI

Includes: CD with software , Documentation CD , Installation guide , Rack Mounting brackets , Rack mounting hardware , Rack Mounting support rails , Temperature Probe , USB cable , Warranty card , Web/SNMP Management Card

Quantity

APC SRT8KRMXLI Smart-UPS SRT 8000VA 230V
Model: SRT8KRMXLI

Includes: CD with software , Documentation CD , Installation guide , Rack Mounting brackets , Rack mounting hardware , Rack Mounting support rails , Temperature Probe , USB cable , Warranty card , Web/SNMP Management Card

Output

Output power capacity

8.0 KWatts / 8.0 kVA

Max Configurable Power (Watts)

8.0 KWatts / 8.0 kVA

Nominal Output Voltage

230V

Output Voltage Distortion

Less than 2%

Output Frequency (sync to mains)

50/60Hz +/- 3 Hz

Other Output Voltages

220, 240

Load Crest Factor

3 : 1

Topology

Double Conversion Online

Waveform type

Sine wave

Output Connections
(4) IEC 320 C19 (Battery Backup)
(6) IEC 320 C13 (Battery Backup)
(1) Hard Wire 3-wire (H N + G) (Battery Backup)
(3) IEC Jumpers (Battery Backup)
Bypass

Internal Bypass (Automatic and Manual)

Input

Nominal Input Voltage

230V , 400V 3PH

Input frequency

40 - 70 Hz (auto sensing)

Input Connections

Hard Wire 3 wire (1PH+N+G), Hard Wire 5-wire (3PH + N + G)

Input voltage range for main operations

160 - 275V

Input voltage adjustable range for mains operation

100 - 275 (half load), 173 - 476 (half load)V

Other Input Voltages

220, 240, 380, 415

Batteries & Runtime

Battery type

Maintenance-free sealed Lead-Acid battery with suspended electrolyte : leakproof

Typical recharge time

1.5hour(s)

Replacement Battery

APCRBC140

Expected Battery Life (years)

3 - 5

RBC Quantity

2

Extendable Run Time

1

Battery Volt-Amp-Hour Capacity

APC-Smart-UPS-SRT-8000VA-RM-230V

Extended Run Options

Communications & Management

Interface Port(s)

RJ-45 10/100 Base-T , RJ-45 Serial , Smart-Slot , USB

Control panel

Multi-function LCD status and control console

Audible Alarm

Audible and visible alarms prioritized by severity

Emergency Power Off (EPO)

Yes

Available SmartSlot™ Interface Quantity

1

Surge Protection and Filtering

Surge energy rating

480Joules

Physical

Maximum Height

263mm , 26.3cm

Maximum Width

432mm , 43.2cm

Maximum Depth

715mm , 71.5cm

Rack Height

6U

Net Weight

111.82kg

Shipping weight

130.0kg

Shipping Height

461mm , 46.1cm

Shipping Width

600mm , 60.0cm

Shipping Depth

1000mm , 100.0cm

Color

Black

Units per Pallet

1.0

Environmental

Operating Environment

0 - 40 °C

Operating Relative Humidity

0 - 95% non-condensing %

Operating Elevation

0-3000meters

Storage Temperature

-15 - 45 °C

Storage Relative Humidity

0 - 95% non-condensing %

Storage Elevation

0-15000meters

Audible noise at 1 meter from surface of unit

55.0dBA

Online thermal dissipation

1497.0BTU/hr

Protection Class

IP 20

Conformance

Standard warranty

3 years repair or replace (excluding battery) and 2 years for battery

SRT8KRMXLI

Data sheet

UPS Type
Smart-UPS
Rack Mountable
Yes
UPS Orientation
Rack
Power Rated VA
8000
