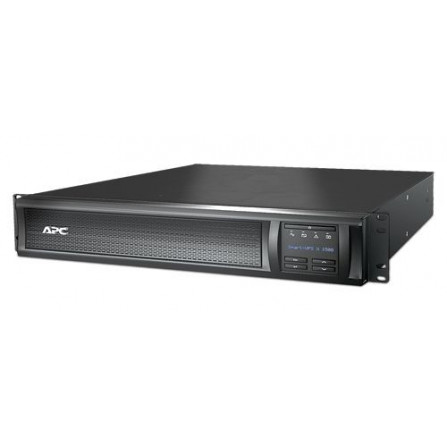

APC SMX1500RMI2U Smart-UPS X 1500VA Rack/Tower LCD 230V

SGD $1,659.00
Tax excluded

APC SMX1500RMI2U Smart-UPS X 1500VA Rack/Tower LCD 230V
Model:
SMX1500RMI2U

Includes: CD with software , Documentation CD , Installation guide , Rack Mounting support rails , Removable support feet , Smart UPS signalling RS-232 cable , USB cable

Quantity

APC SMX1500RMI2U Smart-UPS X 1500VA Rack/Tower LCD 230V
Model:
SMX1500RMI2U

Includes: CD with software , Documentation CD , Installation guide , Rack Mounting support rails , Removable support feet , Smart UPS signalling RS-232 cable , USB cable

Output

Output power capacity

1.2 KWatts / 1.5 kVA

Max Configurable Power (Watts)

1.2 KWatts / 1.5 kVA

Nominal Output Voltage

230V

Output Voltage Distortion

Less than 5%

Output Frequency (sync to mains)

50/60Hz +/- 3 Hz

Topology

Line Interactive

Waveform type

Sine wave

Output Connections
(8) IEC 320 C13 (Battery Backup)

Input

Nominal Input Voltage

230V

Input frequency

50/60 Hz +/- 3 Hz (auto sensing)

Input Connections

IEC-320 C14

Cord Length

1.83 meters

Input voltage range for main operations

160 - 286 V

Input voltage adjustable range for mains operation

151 - 302 V

Number of Power Cords

1

Batteries & Runtime

Battery type

Maintenance-free sealed Lead-Acid battery with suspended electrolyte : leakproof

Typical recharge time

3 hour(s)

RBC Quantity

1

Battery Volt-Amp-Hour Capacity

311

Extended Run Options

APC-Smart-UPS-X-1500VA-Rack-Tower-LCD-230V

Runtime

Communications & Management

Interface Port(s)

SmartSlot , USB

Control panel

Multi-function LCD status and control console

Audible Alarm

Alarm when on battery : distinctive low battery alarm : overload continuous tone alarm

Emergency Power Off (EPO)

Yes

Available SmartSlot™ Interface Quantity

1

Surge Protection and Filtering

Surge energy rating

645 Joules

Filtering

Full time multi-pole noise filtering : 5% IEEE surge let-through : zero clamping response time : meets UL 1449

Physical

Maximum Height

89 , 8.9 cm

Maximum Width

432 , 43.2 cm

Maximum Depth

490 , 49.0 cm

Rack Height

2 U

Net Weight

24.82 kg

Shipping weight

30.0 kg

Shipping Height

246 , 24.6 cm

Shipping Width

589 , 58.9 cm

Shipping Depth

620 , 62.0 cm

Color

Black

Units per Pallet

8.0

Environmental

Operating Environment

0 - 45 °C

Operating Relative Humidity

0 - 95 %

Operating Elevation

0-3000 meters

Storage Temperature

-15 - 45 °C

Storage Relative Humidity

0 - 95 %

Storage Elevation

0-15000 meters

Audible noise at 1 meter from surface of unit

40.0 dBA

Online thermal dissipation

133.0 BTU/hr

Conformance

Approvals

C-tick, CE, EN 50091-1, EN 50091-2, VDE

Standard Warranty: 3 years repair or replace (excluding battery) and 2 year for battery

SMX1500RMI2U

Data sheet

UPS Type
Smart-UPS
Rack Mountable
Yes
UPS Orientation
Rack Tower Versatile
Power Rated VA
1500
