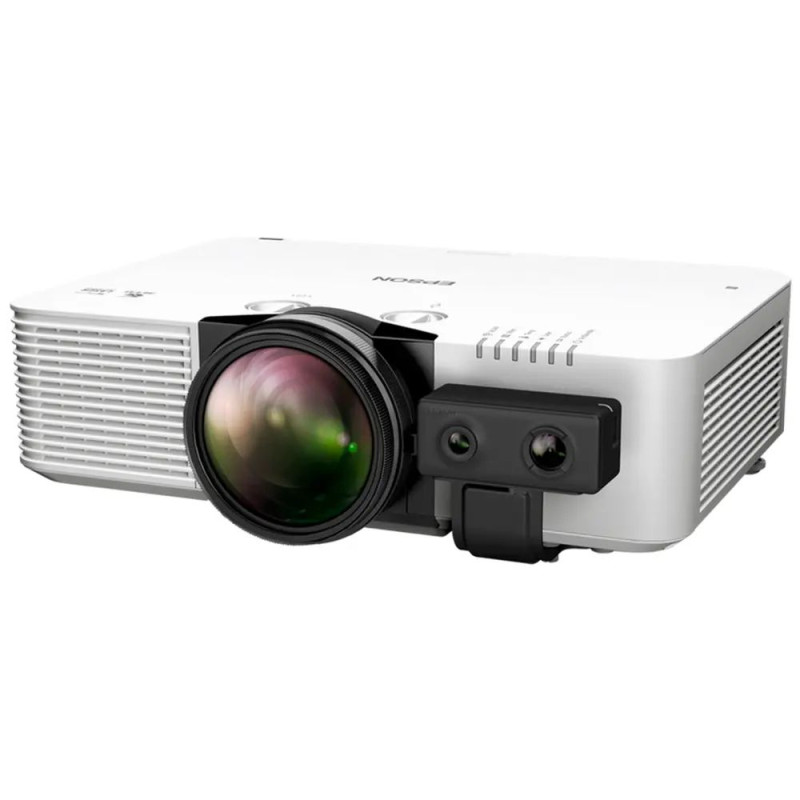

Epson EB-L690E 3LCD WUXGA Laser Projector with 4K Enhancement
Reference: EB-L690E
Epson EB-L690E WUXGA 3LCD Laser Projector with 4K Enhancement
Model: EB-L690E
More info
Epson EB-L690E WUXGA 3LCD Laser Projector with 4K Enhancement
Model: EB-L690E
For detailed pricing and information, please reach out to us at via Contact Us or chat with us via WhatsApp below.
Contrast Ratio:
Contrast Ratio: Over 5,000,000:1
Screen Size (Projected Distance):
Standard Size: 80″ diagonal 2.39m – 3.90mScreen Size: Zoom: Wide: 50″ – 500″ (1.49m – 14.94m)
Zoom: Tele: 50″ – 500″ (2.44m – 24.35m)
Geometric Correction:
Vertical/Horizontal Keystone: ±30° / ±30°Projection Orientation: 360º Free
Operating Temperature:
Single Use: Low Altitude (0 – 2,286m/7,500ft): 0 – 45 °C <32 – 113 °F>
High Altitude (Over 2,286m/7,500ft): 0 – 40 °C <32 – 104°F>
20% – 80% Humidity, No CondensationMulti-projection Use: Low Altitude (0 – 2,286m/7,500ft): 0 – 40 °C <32 – 104 °F>
High Altitude (Over 2,286m/7,500ft): 0 – 35 °C <32 – 95°F>
20% – 80% Humidity, No Condensation
Operating Altitude:
Operating Altitude: Over 1,500m/4,921ft with High Altitude Mode: 0 – 3,048m (0 -10,000ft)
Start-Up Period:
Start-Up Period: 12 seconds (Epson Logo); Warm-up Period: 30 seconds
Cool Down Period:
Cool Down Period: Instant Off
Internal Speaker(s):
Sound Output: 10 W Monaural
Direct Power On/Off:
Direct Power On/Off: Yes
Dimension Excluding Feet (W x H x D):
Dimension Excluding Feet (W x H x D): 440 x 122 x 304mm
Weight:
Weight: Approx. 8.2kg
Air Filter:
Type: Electrostatic FilterMaintenance Cycle*3: 20,000 hours (Normal) / 30,000 hours (Extended)
Fan Noise:
Fan Noise (Normal / Eco): 32dB / 25dB
Specifications Projector:
Size – projected distance: 100” diagonal (wide: 9.3’ – tele: 19.8’) Contrast Ratio: Absolute Black (Full White 1500 lm / Full Black 0 lm) Projection Method: Front / rear / ceiling mount Projection System: 3LCD Reflective, 3-chip technology Poly-silicon TFT active matrix Pixel Number: 2,073,600 dots (1920 × 1080) × 3Color Brightness – Color Light Output: 1500 lumens *1Projected Output: HD, 2D, 3D, 1080pWhite Brightness – White Light Output: 1500 lumens *1Aspect Ratio: Native 16:9 widescreen (4:3 resize), compatible with 4:3 and 2.35:1 video formats with Normal, Full or Zoom Modes Driving Method: Epson Poly-silicon TFT active matrix, 0.74-inch wide panel Reflective HTPS Native Resolution: Native 1080p (1920 × 1080) Laser Type: Laser Diode 41.9 mW (Output) Light Source Life: Up to 20,000 hours (ECO Mode)*2
Power:
Power Consumption: 220 – 240V
LD On (Normal / Extended): 399W / 295W
Standby (Network On / Off): 2.4W / 0.4WPower Supply Voltage: 100 – 240 V AC ±10%, 50/60 Hz
Colour Mode:
Colour Mode: Dynamic, Bright Cinema, Natural, Cinema, Adobe RGB, Digital Cinema, 3D Dynamic, 3D Cinema
Miracast:
Certification: Wi-Fi CERTIFIED Miracast R2Supported Codec: H.264 (AVC)
Wireless Specification (In-built wireless LAN and Screen Mirroring):
Supported Mode : Infrastructure, Simple AP (Wi-Fi Direct)Supported Speed : IEEE 802.11a/b/g/n/ac/axSecurity Tyре: Infrastructure: Open, WPA2 / WPA3-PSK, WPA2 / WPA3-EAP
Supported EAP Type: PEAP, EAP-TLS
Simple AP (Wi-Fi Direct): WPA2-PSK (AES)
Quick Start-Up:
Quick Start-Up: Less than 8 seconds (Display)
AirPlay 2:
Supported Codec: H.264(AVC), H.265(HEVC), AV1, VP9, MEPG-2, MPEG-4
Specifications of Main Parts:
LCD: Size: 0.67” (C2 Fine)
Driving Method: Poly-silicon TFT active matrix
Pixel Number: 2,304,000 dots (1920 x 1200) x 3
Native Resolution: WUXGA
Aspect Ratio: 16:10
Pixel Arrangement: Cross stripeLight Source: Type: Laser Diode
Life (Normal / Extended): 20,000 hours / 30,000 hoursResolution: WUXGA with 4k Enhancement
Pixel Number: 4.6M pixels (1920 x 1200 x 2)5Projection Lens: Type: Optical Zoom (Manual) / Focus (Manual)
F-Number: 1.5 – 1.7
Focal Length: 20.0 – 31.8 mm
Zoom Ratio: 1.0 – 1.60
Throw Ratio: 1.35 – 2.20
Lens Shift: Vertical: ±50% (Manual)
Horizontal: ±20% (Manual)
Adjustment Functions:
Aspect Mode: Auto, 4:3, 16:9, Full, H-zoom, V-zoom, NativeFrame Interpolation: N/A
